Carbon Steel Vessel Tank Welding Seam Grinding Machine

Carbon Steel Vessel Tank Welding Seam Grinding Machine

Product Details:

  • Product Type automatic welding seam grinding machine
  • General Use pressure vessel welding seam grinding machine
  • Material Stainless Steel
  • Weight (kg) 3500 Kilograms (kg)
  • Computerized No
  • Automatic Yes
  • CNC Or Not Normal
  • Supply Ability : 15 Set Per Month
1500.00 - 10000.00 USD ($)/Set
X

Price And Quantity

  • 1500.00 - 10000.00 USD ($)/Set
  • 1 Set

Product Specifications

  • 2900 RPM
  • PLC Control
  • 220/380/415/440 Volt (v)
  • 18 month
  • 3500 Kilograms (kg)
  • 3500x1600x3080 Millimeter (mm)
  • Lower Energy Consumption, ECO Friendly, High Performance, Low Noise
  • 12 m2 /hour
  • Yes
  • pressure vessel welding seam grinding machine
  • Normal
  • Orange
  • Stainless Steel
  • No
  • 1800x1800 mm
  • 250x35 mm
  • automatic welding seam grinding machine

Trade Information

  • Shanghai/Ningbo/Nanjing
  • Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Western Union, Cash Against Delivery (CAD), Telegraphic Transfer (T/T)
  • 15 Set Per Month
  • 5-35 Days
  • Contact us for information regarding our sample policy
  • Standard Export Package for pressure vessel welding seam grinding machine
  • Western Europe, Australia, North America, South America, Eastern Europe, Central America, Asia
  • All India

Product Description

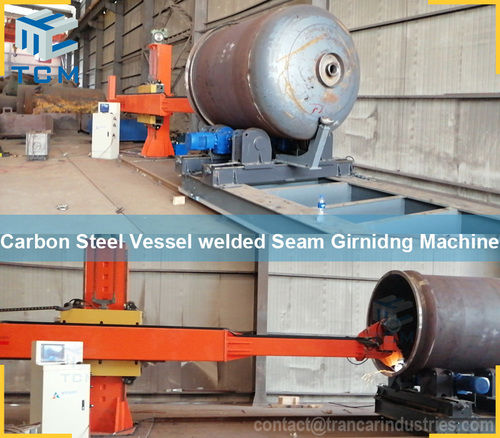

Carbon Steel Vessel Tank Welding Seam Grinding Machine




We are engaged in offering the best in class Carbon Steel Vessel Tank Welding Seam Grinding Machine that is designed for the industries including mechanical, metalworking, aeronautical and others. This machine is designed for the grinding and polishing of vessel tanks. It is an industry-specific machine. Due to its ergonomic design, high build quality and striking features, clients prefer to purchase the Carbon Steel Vessel Tank Welding Seam Grinding Machine to other similar tools available in the marketplace.

    Trancar Industries welding seam grinding polishing machine is custom design based on client’s demands.The turning roller which for rotating tank shell is also custom design one which is adjustable by motor.At the same time this machine mount with camera which make the weld seam polishing process visualization.For more please contact us,we are polishing machine manufacturer custom design and engineer oversea service are available.

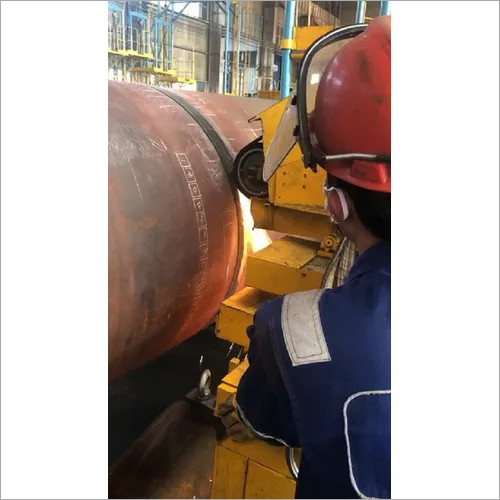

This welding seam polishing machine is suitable for carbon steel tank,stainless steel pressure vessel surface welded joints welding line treatment-grinding & polishing,This welding seam polishing machine also could polish steel tanks internal and external surface, pressure vessel,industrial container and the circumferential welding seams surface.This machine is widely used in medical area,chemical,environmental purification,food ,beverage and water filter,etc.

It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream / Yogurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactor.

Normal configuration(customer design acceptable)

Vessel size

Outside diameter

400~5000mm / 7000 mm

Inside diameter

400~5000mm / 7000 mm

Length

<=5000mm / 8000 mm

Tank Roller Max.Loading capacity

1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T.

Polishing Precision

Surface roughness(Ra)

<=0.25μm

Production Efficiency

Polishing working speed

6~12 m2/h

Total Dimension

Machine Dimension

3500*1600*3080mm

Column Dimension

300x400x8 mm

Beam Dimension

150x200x6 mm

Input total Power

/

12 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight

/

3000kg

Color

Grey/Green/Blue/Red/Yellow Custom design

Suitable Polishing Material

Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc)
