Stainless steel tank mirror surface polishing machine

Stainless steel tank mirror surface polishing machine

Product Details:

  • Type Automatic
  • Material Steel metal
  • Computerized Yes
  • Automatic Grade Automatic
  • Voltage 220/380/415/440 Volt (v)
  • Size 3500x1600x3080 mm
  • Weight 2500 Kilograms (kg)
  • Supply Ability : 1000 Set Per Year
4000.00 - 60000.00 USD ($)/Set
X

Price And Quantity

  • 1 Set
  • 4000.00 - 60000.00 USD ($)/Set

Product Specifications

  • 2500 Kilograms (kg)
  • 3500x1600x3080 mm
  • Automatic
  • Steel metal
  • Yes
  • 18month
  • Blue/grey/Red
  • Automatic
  • 220/380/415/440 Volt (v)

Trade Information

  • Shanghai/Ningbo/Nanjing
  • Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cash Against Delivery (CAD)
  • 1000 Set Per Year
  • 30 Days
  • Contact us for information regarding our sample policy
  • Standard export package for ss tank mirror surface polishing machine
  • Western Europe, Eastern Europe, South America, Australia
  • All India

Product Description

Ss tank mirror surface polishing machine-Mechanical way to do tank surface grinding

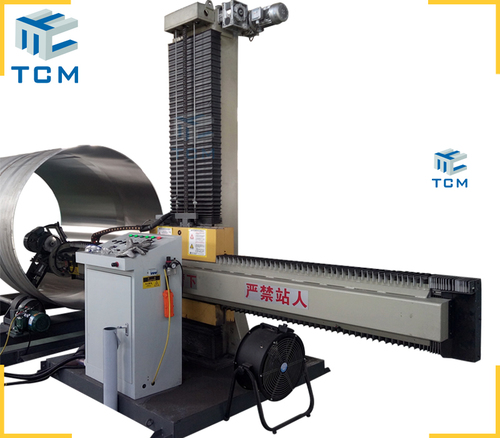

Trancar Industries TCM-T column and boom manipulator stainless steel tank automatic polishing machine,This model is suitable for not only all kinds of stainless steel tanks,industrial tanks internal and external polishing grinding and buffing,but surface of the cylinder inside and outside,pressure vessel,industrial container and the circumferential welded seams polishing,easy to get mirror surface in automatic way.This machine is widely used in medical area,chemical,environmental purification,food ,beverage and water filter,etc.

It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream / Yoghurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.Customdesign service and factory price are available.

Normal configuration(customer design acceptable)

Steel tank size

Outside diameter

400~5000mm / 7000 mm

Inside diameter

400~5000mm / 7000 mm

Length

<=5000mm / 8000 mm

Tank Roller Max.Loading capacity

1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T.

Polishing Precision

Surface roughness(Ra)

<=0.25μm

Production Efficiency

Polishing working speed

6~12 m2/h

Total Dimension

Machine Dimension

3500*1600*3080mm

Column Dimension

300x400x8 mm

Beam Dimension

150x200x6 mm

Input total Power

/

12 kw

Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization

Machine Weight

/

2250kg

Color

Grey/Green/Blue/Red/Yellow Custom design

Suitable Polishing Material

Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc)
