Send InquiryStainless steel tank polishing machine
Product Details:
- Type automatic polishing
- Material Steel
- Capacity 12
- Computerized Yes
- Automatic Grade Semi-Automatic
- Air Pressure 0.4 mpa
- Voltage 380 Volt (v)
- Supply Ability : 10000 Set Per Year
Price And Quantity
- 9000.00 - 100000.00 USD ($)/Set
- 1 Set
Product Specifications
- 18 month
- 380 Volt (v)
- 3500x1600x3080mm
- automatic polishing
- Grey
- Steel
- 2500 Kilograms (kg)
- 12
- Yes
- Semi-Automatic
- 0.4 mpa
Trade Information
- Shanghai
- Cash Against Delivery (CAD), Letter of Credit (L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit at Sight (Sight L/C)
- 10000 Set Per Year
- 30 Days
- Contact us for information regarding our sample policy
- Standard Export Package
- Australia, North America, South America, Western Europe, Asia
- All India
Product Description

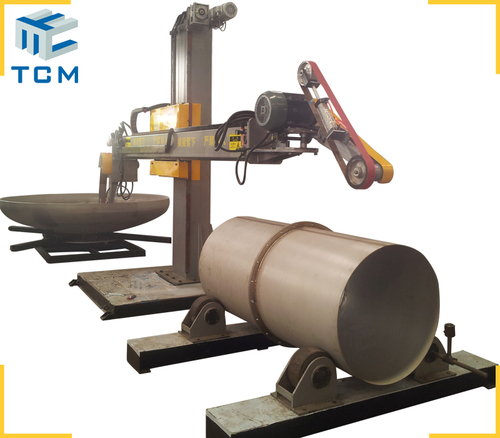

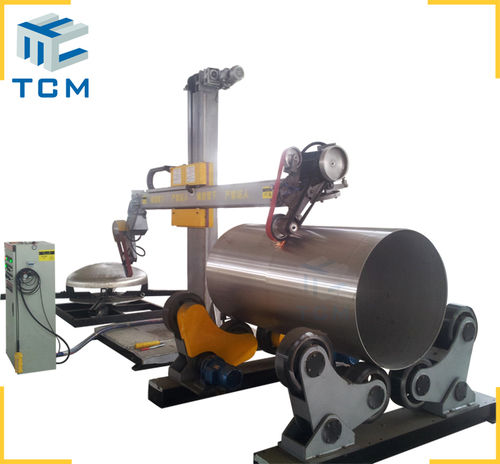

Stainless steel tank automatic polishing machine
Trancar Industries TCM-T column and boom manipulator stainless steel tank automatic polishing machine is suitable for not only all kinds of stainless steel tanks,industrial tanks internal and external polishing grinding and buffing,but surface of the cylinder inside and outside,pressure vessel,industrial container and the circumferential welded seams polishing.
This machine is widely used in Pharmaceuticals,medical area,chemical,environmental purification,food,beverage and water filter etc.
It could buffing all kinds of steel metal cylinder tanks such as,atmospheric/pressure tanks,CIP-tanks,Milk / Cream / Yoghurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.
Custom design service is available.Such as PLC,CNC control system.
|
Normal configuration(customer design acceptable) |
|||
|
Steel tank size |
Outside diameter |
400~5000mm / 7000 mm |
|
|
Inside diameter |
400~5000mm / 7000 mm |
|
|
|
Length |
<=5000mm / 8000 mm |
|
|
|
Tank Roller Max.Loading capacity |
1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T. |
|
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.25μm |
|
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
|
Total Dimension |
Machine Dimension |
3500*1600*3080mm |
|
|
Column Dimension |
300x400x8 mm |
|
|
|
Beam Dimension |
150x200x6 mm |
|
|
|
Input total Power |
/ |
12 kw |
|
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
|
Machine Weight |
/ |
2250kg |
|
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
|
Suitable Polishing Material |
Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc) |
|
|
