Send InquirySteel plate sheet automatic polishing machine
Product Details:
- Type Automatic steel plate polishing machine
- Material Steel plate surface polishing machine
- Computerized No
- Automatic Grade Automatic
- Transparency Opaque
- Air Pressure 0.8 Bar
- Voltage 220/380/415/440 Volt (v)
- Supply Ability : 1000 Set Per Year
Price And Quantity
- 1 Set
- 1.00 - 100000.00 USD ($)/Set
Product Specifications
- Steel plate surface polishing machine
- No
- Grey/Yellow/Blue/Orange
- Opaque
- 3800 Kilograms (kg)
- Automatic steel plate polishing machine
- 0.8 Bar
- 6500x3000x1200 mm
- Automatic
- 220/380/415/440 Volt (v)
- 18 month
Trade Information
- Shanghai
- Cash Against Delivery (CAD), Letter of Credit (L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit at Sight (Sight L/C)
- 1000 Set Per Year
- 35 Days
- Contact us for information regarding our sample policy
- Standard Export package for steel plate automatic polishing machine delivery
- Australia, North America, South America, Western Europe, Central America, Asia
- All India
Product Description

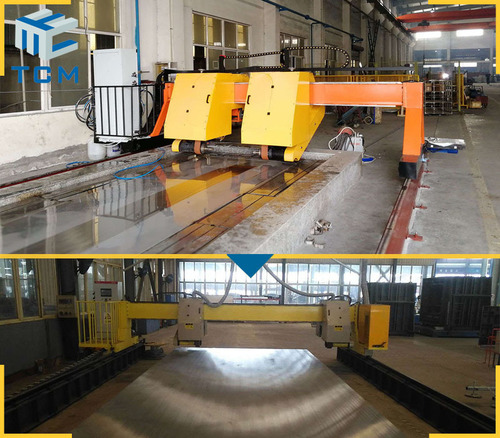

Steel plate sheet automatic polishing machine
Trancar Industries TCM-PM polishing machine is a type of stainless steel surface finishing machine,it could do dust removing,welded joint’s surface grinding and mirror surface buffing for steel metal flat plate sheets.
It’s mainly used to polish & grind various materials of large plate sheets, such as the polishing of composite sheets and carbon steel plate before the composite grinding & surface finishing after sheet compounding.It’s especially suitable for the polishing,grinding and drawing of stainless steel plate.Due to the movement of the grinding head and the grinding method of the flat plate sheet,the length of the sheet is less than 10 meters,and the machine guide rail can be revised accordingly.Flat sheet automatic polishing machine are widely used in the field of Food processing,catering,brewing and chemical.
TCM-PM Steel plate sheet automatic polishing machine parameter:
|
Normal configuration(customer design acceptable) |
|||
|
Steel metal sheet size |
Max.Available Width |
800 / 1500 / 2000 mm |
|
|
Thickness |
≧1.5 mm |
|
|
|
Length |
≦10,000 mm |
|
|
|
Machine Dimension |
(L×W×H) 6500×3000×1200 mm |
|
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.8μm |
|
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
|
Input total Power |
8Kw/12Kw /20kw |
|
|
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
|
Machine Weight |
/ |
3800kg |
|
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
|
Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
|
|
