Send InquirySteel sheet flat sheet automatic polishing machine
Product Details:
- Type Flat sheet automatic polishing machine
- Material Steel sheet polishing machine
- Computerized Yes
- Automatic Grade Automatic
- Transparency Opaque
- Air Pressure 0.8 Bar
- Voltage 220/380/415/440 Volt (v)
- Supply Ability : 1000 Set Per Year
Price And Quantity
- 1 Set
- 1.00 - 100000.00 USD ($)/Set
Product Specifications
- 18 month
- 220/380/415/440 Volt (v)
- 6500 x 3000 x 1200 mm
- Flat sheet automatic polishing machine
- Grey/Blue/Yellow/Orange
- Opaque
- Steel sheet polishing machine
- 3800 Kilograms (kg)
- Yes
- Automatic
- 0.8 Bar
Trade Information
- Shanghai/Ningbo/Nanjing
- Cash Against Delivery (CAD), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Western Union, Telegraphic Transfer (T/T)
- 1000 Set Per Year
- 30 Days
- Contact us for information regarding our sample policy
- Standard packages for steel sheet polishing machine delivery
- Asia, Australia, North America, South America, Western Europe
- All India
Product Description

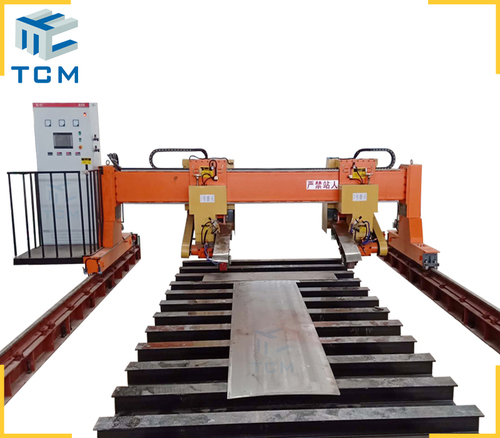

Steel sheet flat sheet automatic polishing machine
Trancar industries manufacturing all kinds of PLC and CNC automatic polishing grinding buffing machine for various steel metal (aluminum,copper, Inconel,titanium,and clad metals) made products’ surface treatment,such as steel tank shell buffing machine,pressure vessel polishing machine,vessel head polishing machine,dish head polishing machine,tank cap surface grinding machine,plate sheet polishing machine,welding seam polishing machine,circular welded seam flatten machine,longitudinal welding seam planishing machine,Wire rod polishing machine,steel tube exterior polishing machine,pipe inner surface grinding machine etc.our polishing machine finish grades vary from grinding (#3) to mirror (#8) with grit designations from 50-2000# for an extra fine finish,Ra≦0.2Um.Besides automatic polishing machines,we also supply tank longitudinal and circle way welding machine,cone rolling/bending machine and hydroform metal bellows & welded metal bellows based on clients’ requirements.Custom design service is available.
Trancar Industries TCM-PM polishing machine is a type of stainless steel surface finishing machine,it could do dust removing,welded joint’s surface grinding and mirror surface buffing for steel metal flat plate sheets.
It’s mainly used to polish & grind various materials of large plate sheets, such as the polishing of composite sheets and carbon steel plate before the composite grinding & surface finishing after sheet compounding.It’s especially suitable for the polishing,grinding and drawing of stainless steel plate.Due to the movement of the grinding head and the grinding method of the flat plate sheet,the length of the sheet is less than 10 meters,and the machine guide rail can be revised accordingly.Flat sheet automatic polishing machine are widely used in the field of Food processing,catering,brewing and chemical.
|
Normal configuration(customer design acceptable) |
|||
|
Steel metal sheet size |
Max.Available Width |
800 / 1500 / 2000 mm |
|
|
Thickness |
≧1.5 mm |
|
|
|
Length |
≦10,000 mm |
|
|
|
Machine Dimension |
(L×W×H) 6500×3000×1200 mm |
|
|
|
Polishing Precision |
Surface roughness(Ra) |
<=0.8μm |
|
|
Production Efficiency |
Polishing working speed |
6~12 m2/h |
|
|
Input total Power |
8Kw/12Kw /20kw |
|
|
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
|
Machine Weight |
/ |
3800kg |
|
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
|
Suitable Polishing Materials |
Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc) |
|
|
