Product Description

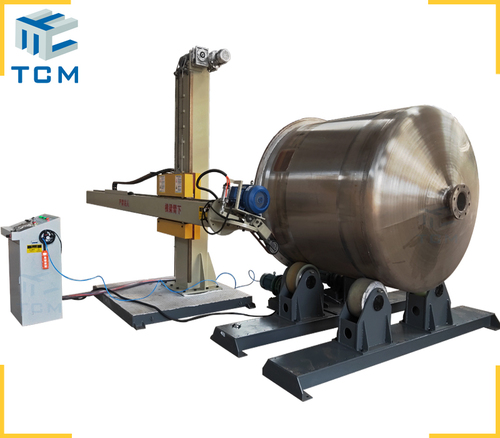

TCM-T Steel storage tank automatic polishing machine from Trancar Industries
Automatic steel tank polishing machine is suitable for all kinds of stainless steel tanks, industrial tanks/vessels shells mirror surface grinding,could polish the inside and outside of storage tank,Mirror surface finish of pressure vessel and industrial container and the circumferential weld processing.The tank polishing machine is extensive apply for the polishing of work piece in the range of medical,chemical, environmental purification, food and beverage, water filtration etc.Custom design service is available.
Normal configuration(customer design acceptable)
|
Steel tank size
|
Outside diameter
|
400~5000mm / 7000 mm
|
|
Inside diameter
|
400~5000mm / 7000 mm
|
|
Length
|
<=5000mm / 8000 mm
|
|
Tank Roller Max.Loading capacity
|
1 Ton,2 Ton,5 Ton,10 Ton for option or customization 13T,15 T 20T.
|
|
Polishing Precision
|
Surface roughness(Ra)
|
<=0.25μm
|
|
Production Efficiency
|
Polishing working speed
|
6~12 m2/h
|
|
Total Dimension
|
Machine Dimension
|
3500*1600*3080mm
|
|
Column Dimension
|
300x400x8 mm
|
|
Beam Dimension
|
150x200x6 mm
|
|
Input total Power
|
/
|
12 kw
|
|
Power Supply
|
380V 415V / 50Hz 60HZ / 3p or Customization
|
|
Machine Weight
|
/
|
2250kg
|
|
Color
|
Grey/Green/Blue/Red/Yellow Custom design
|
|
Suitable Polishing Material
|
Abrasive sanding belts,grinding wheels (flap/cloth/ emery/Nylon wheel etc)
|
|
