Send InquirySteel wire rod surface grinding machine
Product Details:
- Type Automation
- Material Steel Metal
- Computerized Yes
- Automatic Grade Automatic
- Transparency Opaque
- Voltage 220/380/415/440 Volt (v)
- Size 2650×1050×1300 mm
- Supply Ability : 1000 Set Per Year
Price And Quantity
- 1 Set
- 1.00 - 50000.00 USD ($)/Set
Product Specifications
- 2650×1050×1300 mm
- Yes
- Automatic
- Automation
- Opaque
- Yellow/white/Blue
- 2100 Kilograms (kg)
- 18 month
- 220/380/415/440 Volt (v)
- Steel Metal
Trade Information
- Shanghai/Ningbo
- Letter of Credit (L/C), Western Union, Letter of Credit at Sight (Sight L/C), Cash Against Delivery (CAD), Telegraphic Transfer (T/T)
- 1000 Set Per Year
- 25 Days
- Contact us for information regarding our sample policy
- Standard Export packages for wire rod surface grinding machine shipping.
- Western Europe, North America, Asia
- All India
Product Description

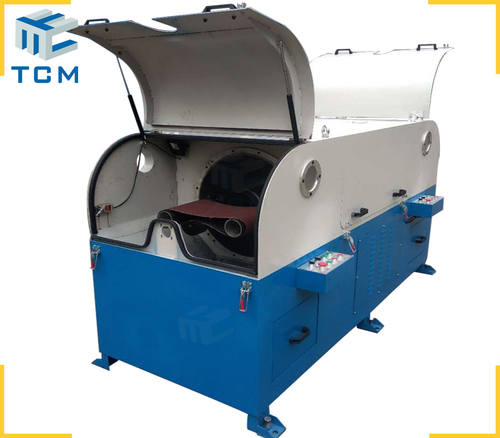

Trancar steel wire rod surface grinding machine automatic polishing machine
Company Profile:
TCM industries supply all kinds of PLC and CNC automatic polishing grinding buffing machine for various steel metal (aluminum,copper, Inconel,titanium,and clad metals) made products’ surface treatment,such as steel tank shell buffing machine,pressure vessel polishing machine,vessel head polishing machine,dish head polishing machine,tank cap surface grinding machine,plate sheet polishing machine,welding seam polishing machine,circular welded seam flatten machine,longitudinal welding seam planishing machine,Wire rod polishing machine,steel tube exterior polishing machine,pipe inner surface grinding machine etc.
Updated automatic grinding machine for steel wire rod surface grinding polishing
Trancar Industries Model TCM-WR automatic steel wire rod grinding machine is design for stainless steel metal wire rods’ surface grinding and buffing.This machine adopts mechanical method to process the surface of metal wire rod to grind,polish and rust,replace the original pickling, environmental protection and energy saving, meet the requirements of mass production,achieve high production efficiency and stable and reliable product quality.
This belt sander removes oxide scale or oxide film and its particles from the wire.Through the four fixed rollers (single side) and two tension rollers supported by the turntable,two high-speed rotating abrasive belts are driven to polish,and the rotation speed of the turntable and the feed speed of the wire match each other.
The thickness of the double-headed belt can be freely combined according to the product's finish requirements.Custom design service is available.
Factory price Steel Wire Rod grinding machine parameter:
|
Normal configuration(customer design acceptable) |
|||
|
Wire Rod Diameter |
1-5mm / 5-8mm / 8-16mm / 16-25mm |
|
|
|
Machine Dimension |
(L×W×H) 2650×1050×1300mm |
|
|
|
Abrasive Belts Size |
1600*500 mm / 1350*300mm / 1250*300mm etc |
|
|
|
Production Efficiency |
Polishing working speed |
120-200 m/h |
|
|
Input total Power |
35 kw |
|
|
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
|
Machine Weight |
/ |
2100kg |
|
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
|
For option |
Dust Collection system is available during polishing. |
|
|
